Lectin protocol for yeast

Concanavalin A mounting protocol

The following protocol explains how to use the temperature controller CherryTemp when yeast cells are mounted on lectin coated slides. Yeast cells are deposited on lectin coated coverslips and our dedicated spacers allow to simply place the CherryTemp chip on top. Lectin helps to reduce cell movement for optimal imaging and CherryTemp allows for an accurate temperature control without disturbing cells.

No shear stress and an easy protocol for rapid mounting and imaging of yeasts.


The world fastest heater & cooler system for microscopy

Need more information on cells & temperature?


Step 1 : Pipet a drop of lectin (Concanavalin A, Con A) on a high-resolution glass coverslip.

Lectin protocol for yeast_Fig-01

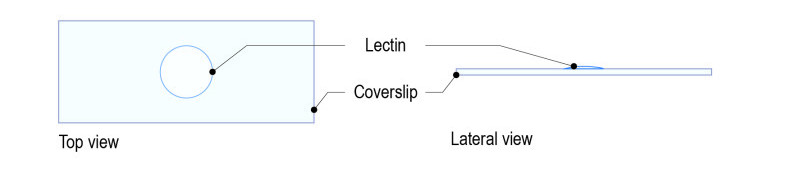

Step 2: Let the liquid evaporate under the hood.

Lectin protocol for yeast_Fig-02

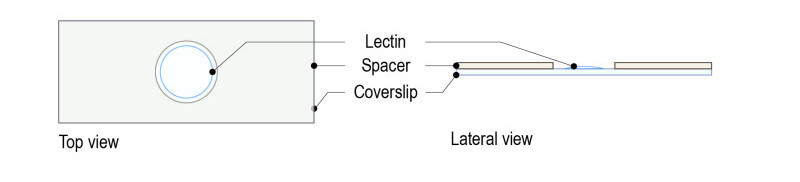

Step 3: Top the coverslip with our dedicated spacer.

Lectin protocol for yeast_Fig-03

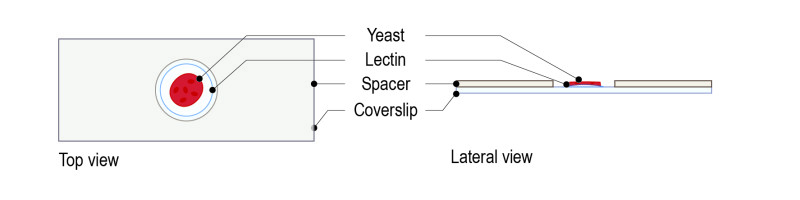

Step 4: Drop the yeast sample (up to 15µl) centred in the spacer hole. Concentration of cells is recommended to achieve an optimal cell density.

Important: medium must not touch the sides of the spacer.

Lectin protocol for yeast_Fig-04

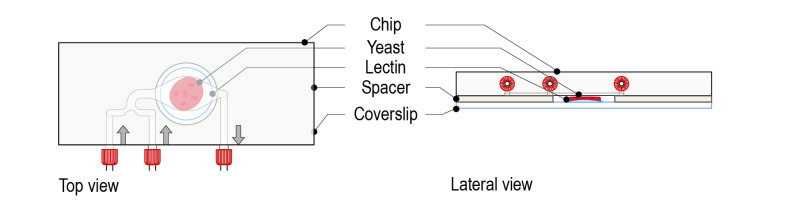

Step 5: Top with the CherryTemp chip (engraved arrows facing up, glass surface and microfluidic chamber facing the sample).

Lectin protocol for yeast_Fig-05

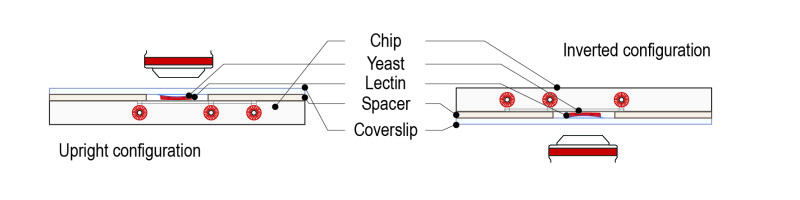

Step 6: Place the mounted slide on either an upright or an inverted configuration by simply flipping it.

Lectin protocol for yeast_Fig-06


Methods adapted from P. Tran lab (Institut Curie) and from our user’s feedback.
